Telescan Mark 2 STD
Technical characteristics :
- HMI 1200 short arc lamp
- CMY mixing color system
- progressive frost filter
- iris can fully closed
- 4 fixed gobos + open- 2 motorized gobos
- manual zoom
- manual focus
- PAN 180°
- TILT 90°
- separate ballast
Other Infos :
built between 85 and 87 in some versions were to be subsequently transformed, the Telescan Mark-2 model is the projector which will be developed many innovations in automated fully controllable light.
It is the first fixture to use subtractive CMY and frost (in gelatin Lee filters), he received in 1989 a steerable mirror PAN TILT 180° x 90° turret (it was previously only 90° x 90°), and it is also on the Mark-2 what invented the rotating gobo (on an Alain Lonchampt idea).
These massive machines without a power equal to the time, proudly tours illuminate Pink Floyd, Madonna, Elton John, Janet Jackson, Jean- Michel Jarre, etc ... It will then also present on many TV studios and most major performances over the world.
Equipment in this series that have were built between 1987 and 1989 , and are modified such that all "standard" Mark-2 turret with 180° / 90°, rotating gobos, anti-leakage bibs, and latest ballast model.

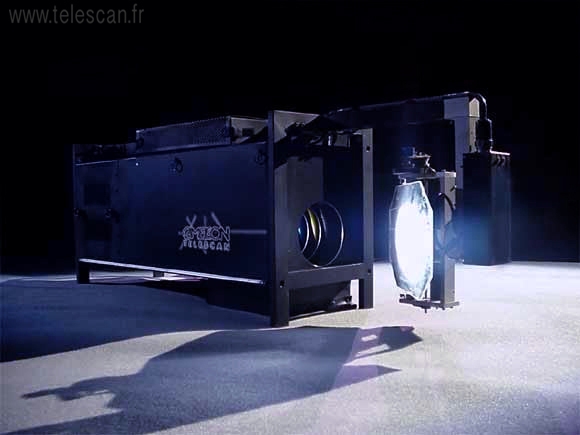

Cameleon Telescan Mark 2 "standard" (1989 / 1990)
Photo : J. Morel 2000
